Baird MWA needle

Designed for microwave energy delivery

Explore the Baird microwave ablation (MWA) needle, including its design, ultrasound visualization, ex vivo ablation-zone data, and available configurations.

Ablation zone

Limited forward extension

Bench testing showed the ablation zone developing predominantly toward the shaft, with limited extension beyond the needle tip at tested settings.

Ex vivo porcine-liver bench testing, T-1408 needle; data on file. Volumes are shown in cm³ (1 cm³ = 1 mL).

35 W

TimeLength × WidthVolume

3 min: 2.37 × 1.43 cm; 2.67 cm³
6 min: 2.70 × 1.90 cm; 4.03 cm³
9 min: 2.80 × 2.07 cm; 4.54 cm³

50 W

TimeLength × WidthVolume

3 min: 2.80 × 1.87 cm; 4.10 cm³
6 min: 3.33 × 2.60 cm; 6.79 cm³
9 min: 3.83 × 2.80 cm; 8.43 cm³

60 W

TimeLength × WidthVolume

3 min: 2.87 × 1.90 cm; 4.28 cm³
6 min: 3.67 × 2.60 cm; 7.49 cm³
9 min: 4.10 × 3.13 cm; 10.10 cm³

Ablation dimensions vary with needle model, power, treatment time, and tissue conditions. Ex vivo results may differ from performance in perfused human tissue, and bench data are not predictive of clinical outcomes. Zone illustrations are representative geometry, not to scale.

Needle design

Designed for precise placement and controlled energy delivery

Baird MWA needle shown full length, from the distal trocar tip and graduated shaft through the handle to the connection interface

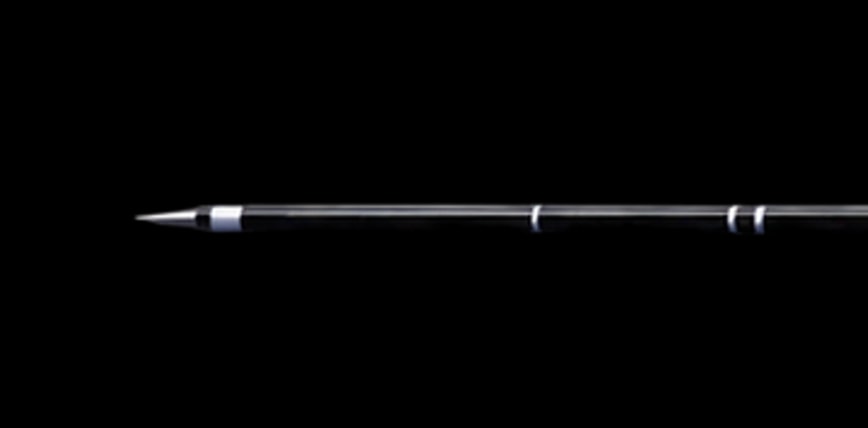

Sharp trocar tip

Graduated shaft markings

Ultrasound-optimized shaft

Cooling and temperature monitoring

Sharp trocar tip
Graduated shaft markings
Ultrasound-optimized shaft
Cooling and temperature monitoring

Manufactured by Betters (Suzhou) Medical Co., Ltd. · U.S. sales and support by Baird Medical LLC.

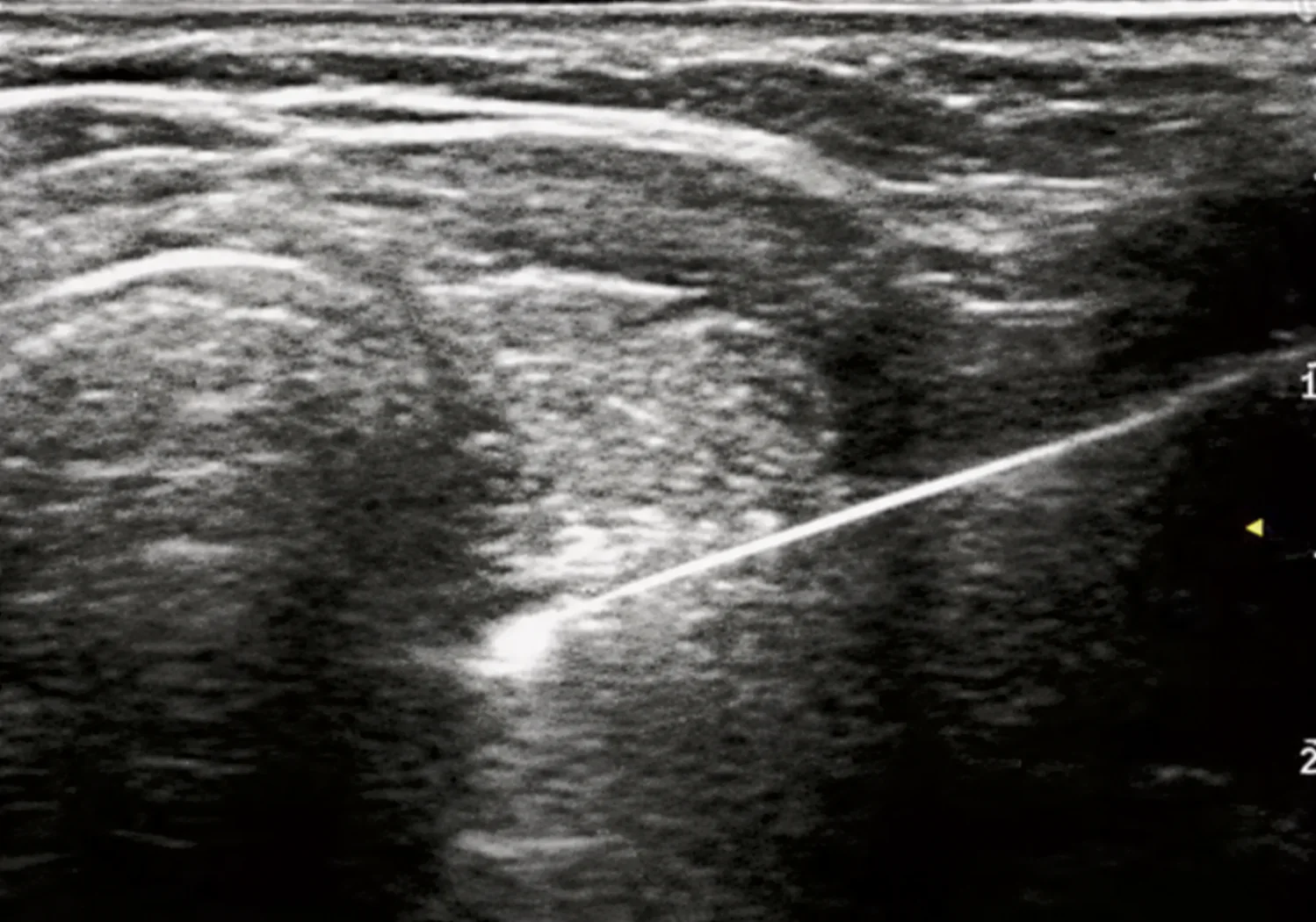

Intraprocedural ultrasound image showing the Baird MWA needle shaft tracking toward a thyroid nodule — Representative intraprocedural ultrasound during microwave ablation with the Baird MWA needle.

Under ultrasound

Visualization during placement

The needle’s ultrasound-optimized shaft is designed to support clear visualization under ultrasound during placement.

Configurations

Two diameters. Two working lengths.

Needle length and diameter options cover different access needs across the T-series. Refer to the Instructions for Use and model-specific product information.

1.4 / 1.6 mm: Shaft diameter
80 / 100 mm: Working length
3.5 mm: Active tip
T-1408 / 1410 / 1608 / 1610: Models

Full specifications in the spec sheet.

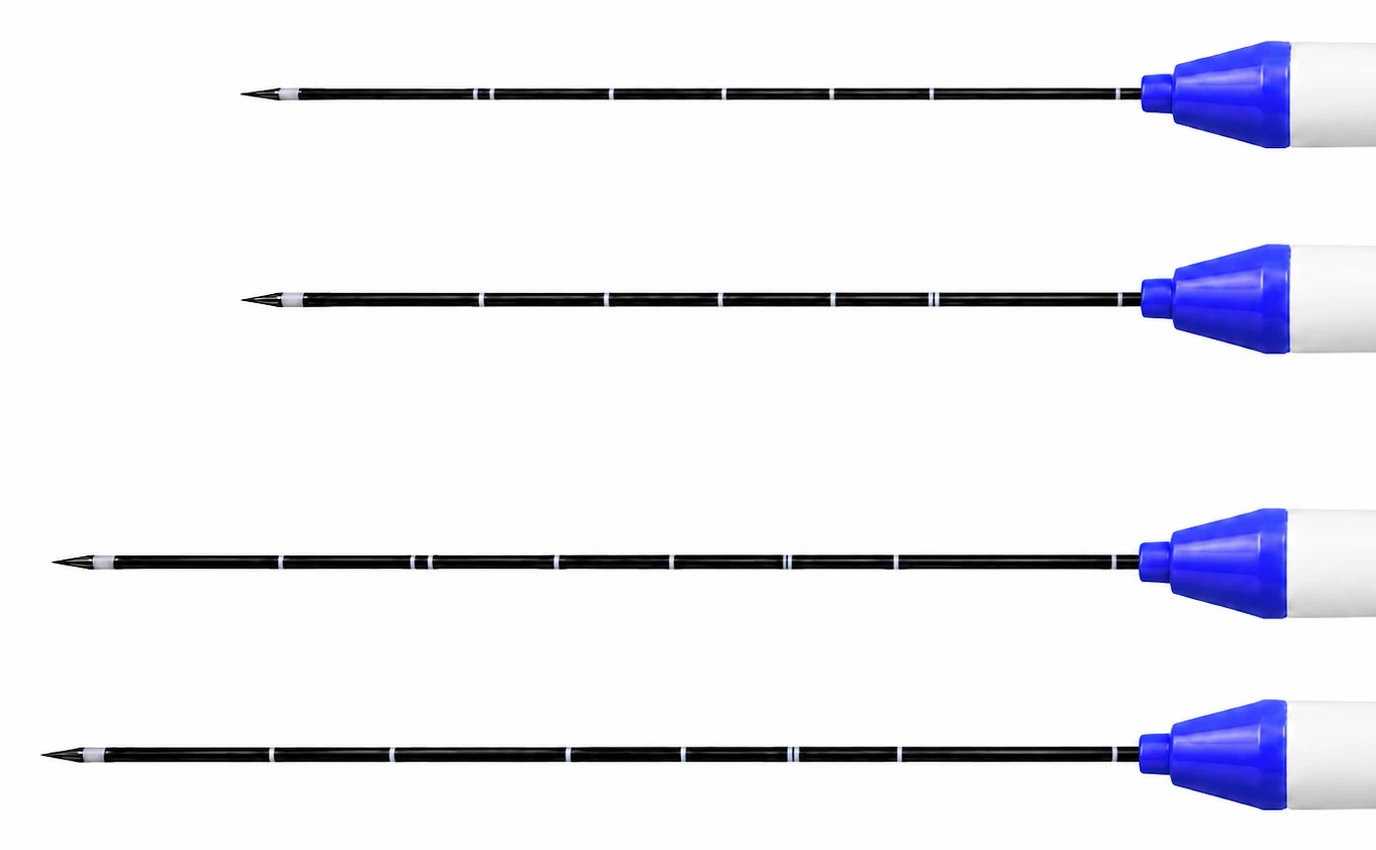

The four Baird MWA needle configurations shown together, in two shaft diameters and two working lengths

Program support

From your first case to a full service line

Hands-on training: Peer-to-peer education and hands-on product and workflow training.
Workflow and site readiness: Room setup, imaging context, staff roles, and site requirements.
Patient education: Patients arrive prepared, with guides they download before the visit. See the materials

Explore program support

Put the Baird MWA needle in your hands

Book a hands-on session with a Baird specialist and get the full spec sheet and IFU for your value-analysis review.

Request a demo View needle specifications

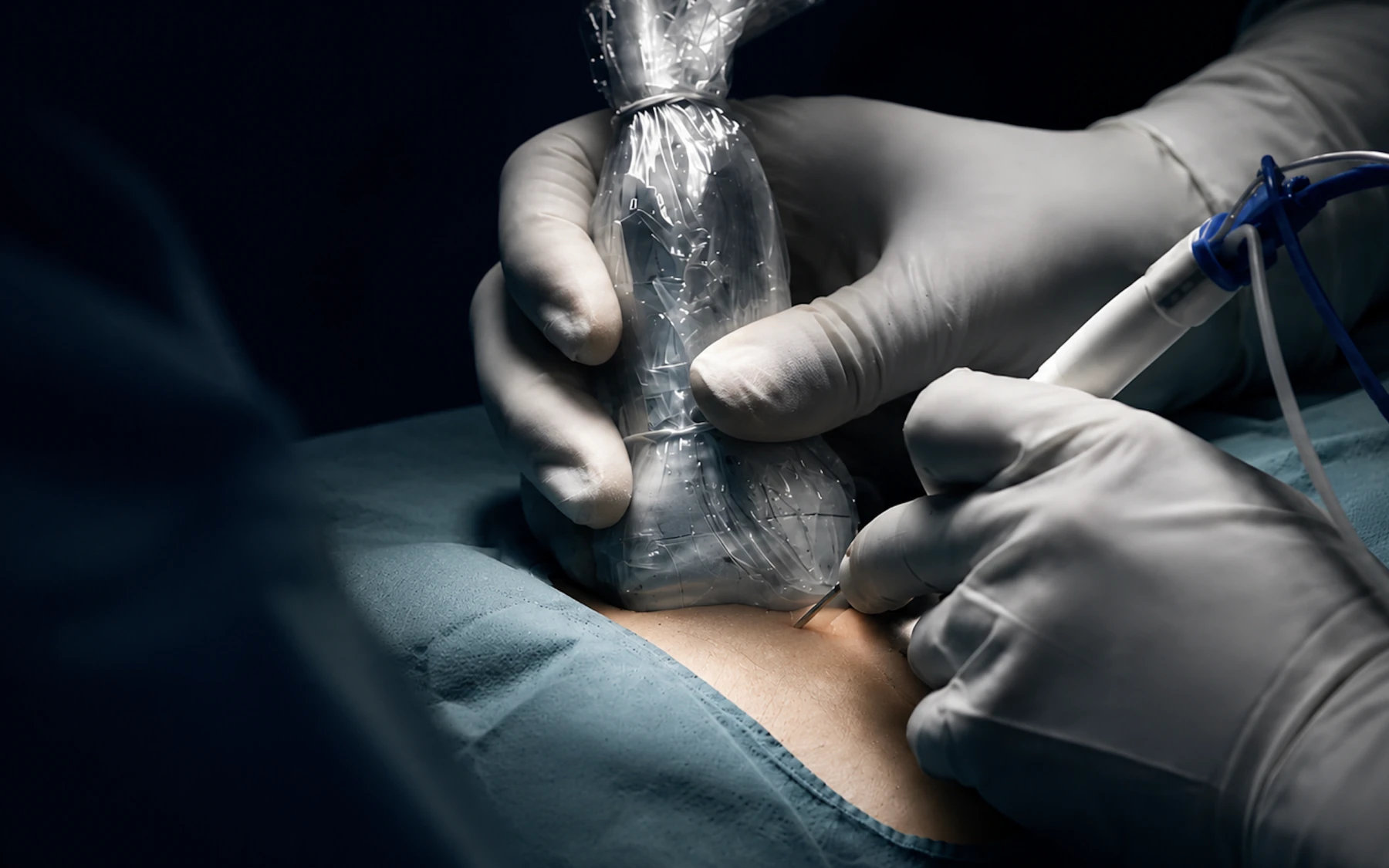

Ultrasound-guided percutaneous needle placement during a microwave ablation procedure

Indications & Safety

Rx only. The Disposable Microwave Ablation Needle is indicated for coagulation (ablation) of soft tissue. Not intended for cardiac use. Sterile, single use only. Used with the Microwave Ablation System (BD-GT). Contraindicated in patients with massive bleeding tendency; not recommended for pregnant women; use caution in patients with severe coagulation dysfunction. Potential risks and complications include pain, bleeding or hematoma, swelling, thyroid-function changes, voice changes, and injury to nearby structures. Refer to the Safety Information and the Instructions for Use.

FDA 510(k) K232241 · Class II
